ANT16, ANT26, ANT35, ANT38, ANT52 Electric Cylinders

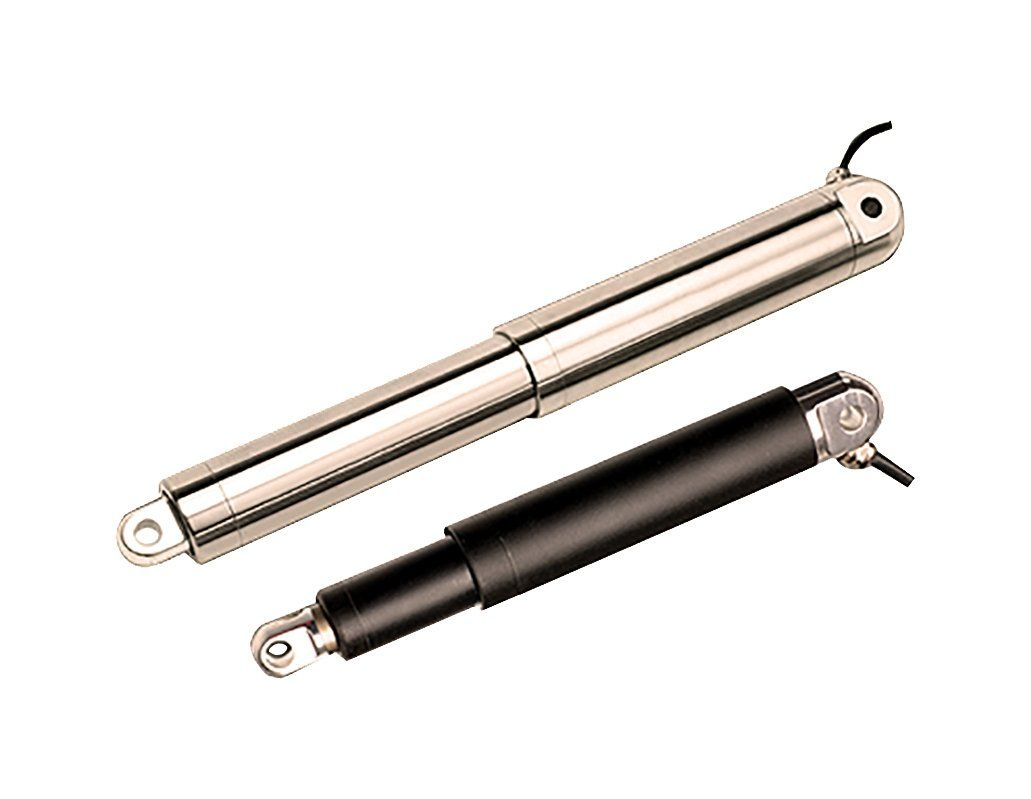

ANT inline electric cylinders are often installed in concealed positions due to their slim design. They are used to open windows and doors or adjust building sunshades. These electric cylinders are also available in stainless steel for outdoor use.

Diameters of 16, 26, 35, 38, and 52 mm allow forces of up to 6000 N. Several speeds are available for each size of ANT electric cylinder. Every ANT electric cylinder is available in 12 or 24 V DC.

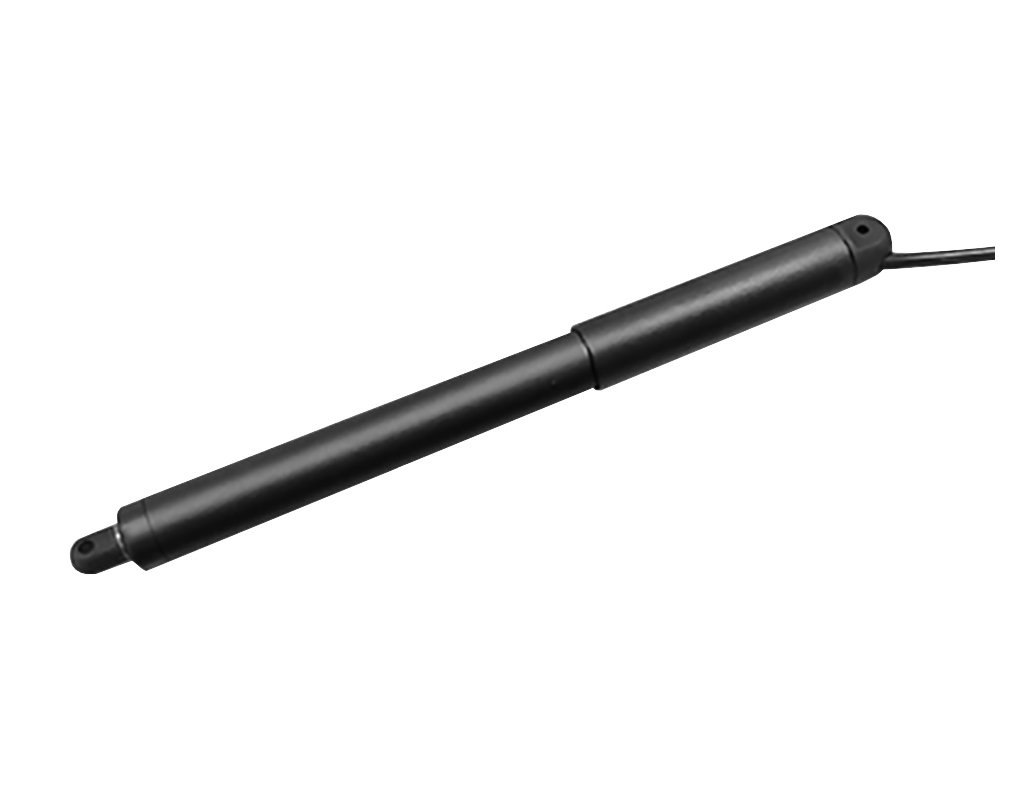

Elektrozylinder ANT

ANT Electric Cylinder with Trapezoidal Screw Drive

ANT16 Electric Cylinder

  • Stroke: 50, 100 mm
  • Force: 20, 50 N
  • Speed: 15, 7.5 mm/s

ANT26 Electric Cylinder

  • Stroke: 50, 100, 150, 200 mm
  • Force: 100, 250, 500 N
  • Speed: 15, 8.5, 5 mm/s

ANT35 Electric Cylinder

  • Stroke: 50, 100, 150, 200, 250, 300, 350, 400 mm
  • Force: 100, 300, 400, 600, 800, 1200, 1800, 2300 N
  • Speed: 35, 25, 18, 12, 6.8, 3.5 mm/s

ANT38 Electric Cylinder (like ANT35 but with internal limit switches)

  • Stroke: 50, 100, 150, 200, 250, 300, 350, 400 mm
  • Force: 100, 300, 400, 600, 800, 1200, 1800, 2300 N
  • Speed: 35, 25, 18, 12, 6.8, 3.5 mm/s

ANT52 Electric Cylinder

  • Stroke: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500 mm
  • Force: 300, 1200, 1800, 3000, 4500, 6000 N
  • Speed: 88, 24, 16, 12, 9.6, 6.4, 4.8 mm/s
