Telescopic Rail LI-DTP30
Single full-extension rail with dimensions of 30×17 mm, designed for heavy-duty applications. The material is not hardened. Load capacities are calculated for a service life of 100,000 cycles at full load. We supply these rails in C45 steel or, upon request, in aluminum or stainless steel.
Datenblatt LI-DTP30
Data Sheet LI-DTP30

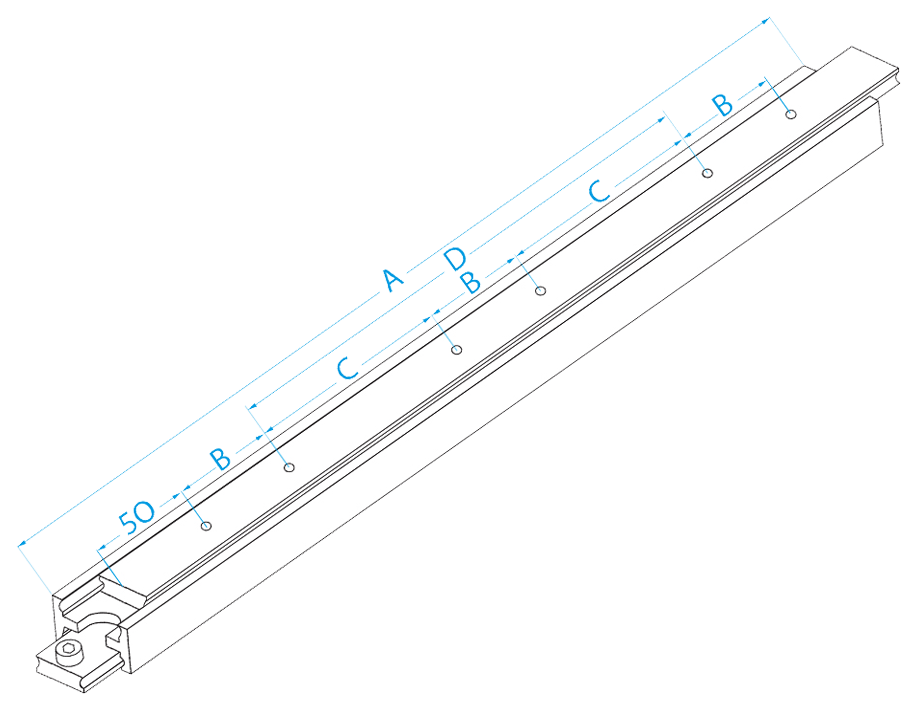

| Designation | Installation length (mm) | Load capacity (kg) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) |
|---|---|---|---|---|---|---|
| LI-DTP30-030 | 300 | 120 | 300 | 50 | – | 100 |
| LI-DTP30-035 | 350 | 120 | 350 | 50 | – | 150 |
| LI-DTP30-040 | 400 | 125 | 400 | 50 | – | 200 |
| LI-DTP30-045 | 450 | 130 | 450 | 50 | – | 250 |
| LI-DTP30-050 | 500 | 135 | 500 | 50 | – | 300 |
| LI-DTP30-055 | 550 | 140 | 550 | 50 | 150 | – |
| LI-DTP30-060 | 600 | 140 | 600 | 50 | 175 | – |
| LI-DTP30-065 | 650 | 135 | 650 | 50 | 200 | – |
| LI-DTP30-070 | 700 | 130 | 700 | 50 | 225 | – |
| LI-DTP30-075 | 750 | 125 | 750 | 50 | 250 | – |
| LI-DTP30-080 | 800 | 120 | 800 | 50 | 275 | – |
