Telescopic Rail LI-DTP40

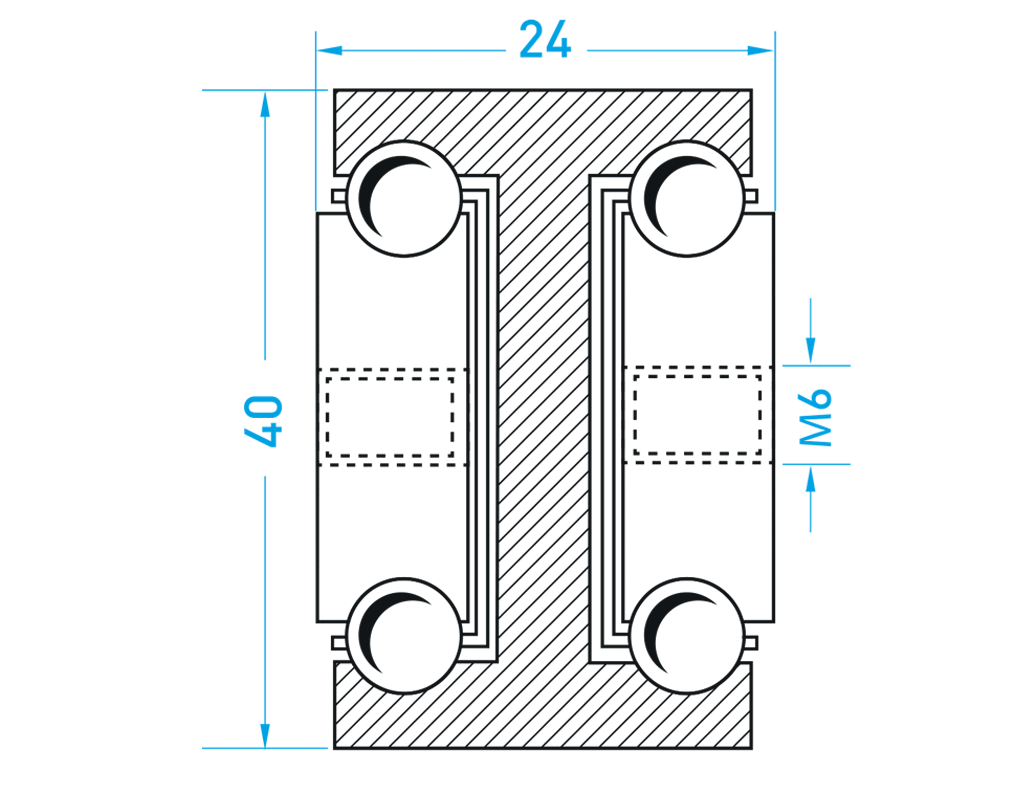

Single full-extension rail with dimensions of 40×24 mm, designed for heavy-duty applications. The material is not hardened. Load capacities are calculated for a service life of 100,000 cycles at full load. We supply these rails in C45 steel or, upon request, in aluminum or stainless steel.

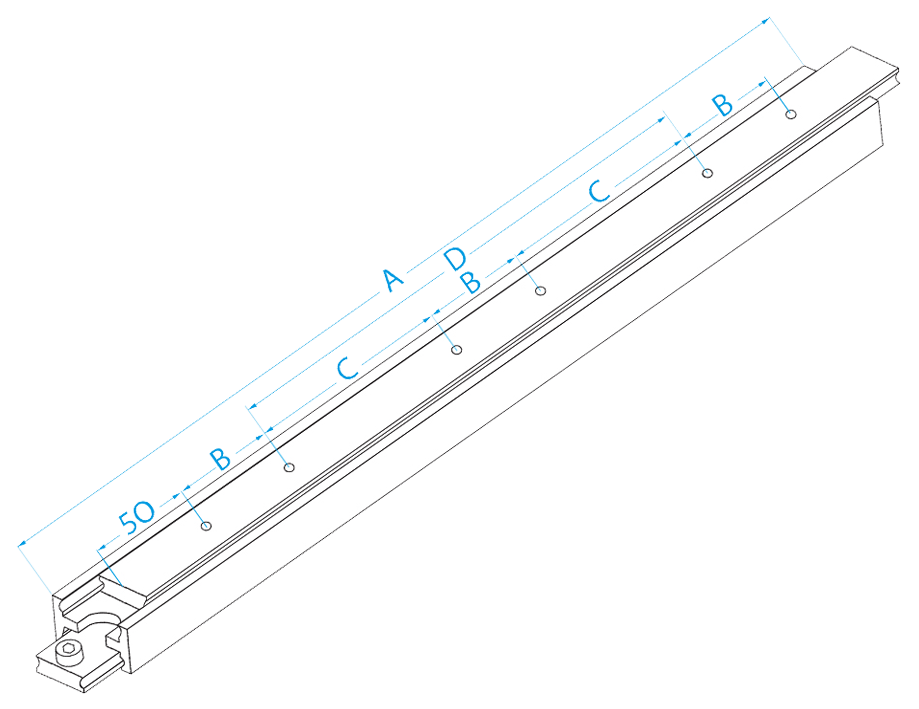

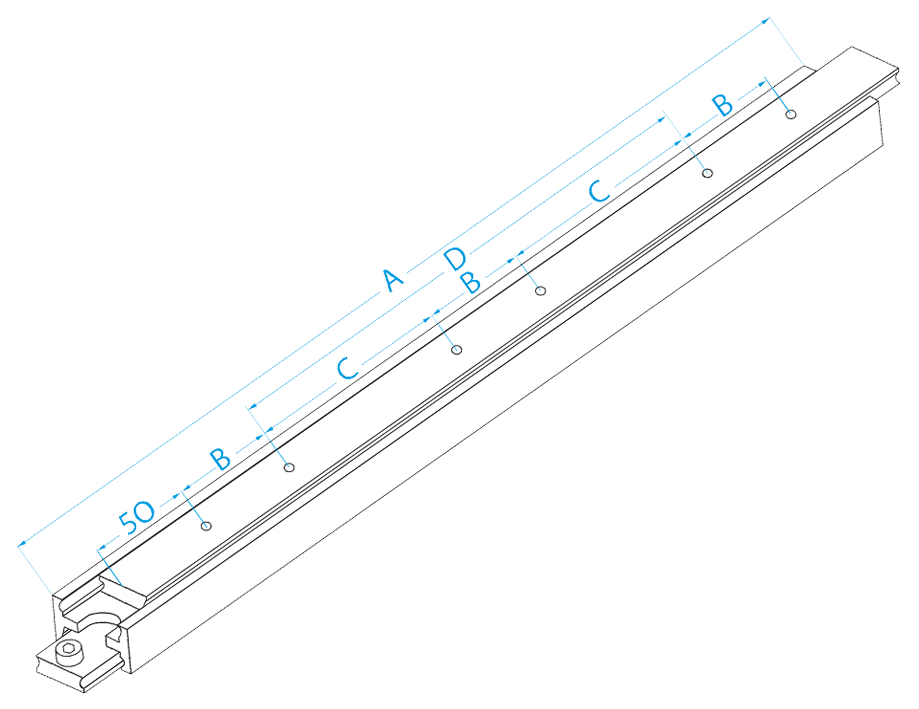

| Designation | Installation length (mm) | Load capacity (kg) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) |
|---|---|---|---|---|---|---|
| LI-DTP40-030 | 300 | 240 | 300 | 50 | – | 100 |
| LI-DTP40-035 | 350 | 260 | 350 | 50 | – | 150 |
| LI-DTP40-040 | 400 | 280 | 400 | 50 | – | 200 |
| LI-DTP40-045 | 450 | 300 | 450 | 50 | – | 250 |
| LI-DTP40-050 | 500 | 310 | 500 | 50 | – | 300 |
| LI-DTP40-055 | 550 | 330 | 550 | 50 | 150 | – |
| LI-DTP40-060 | 600 | 340 | 600 | 50 | 175 | – |
| LI-DTP40-065 | 650 | 340 | 650 | 50 | 200 | – |
| LI-DTP40-070 | 700 | 330 | 700 | 50 | 225 | – |
| LI-DTP40-075 | 750 | 325 | 750 | 50 | 250 | – |
| LI-DTP40-080 | 800 | 320 | 800 | 50 | 275 | – |
| LI-DTP40-085 | 850 | 315 | 850 | 50 | 300 | – |
| LI-DTP40-090 | 900 | 310 | 900 | 50 | 325 | – |
| LI-DTP40-095 | 950 | 305 | 950 | 50 | 350 | – |
| LI-DTP40-100 | 1000 | 300 | 1000 | 50 | 375 | – |
