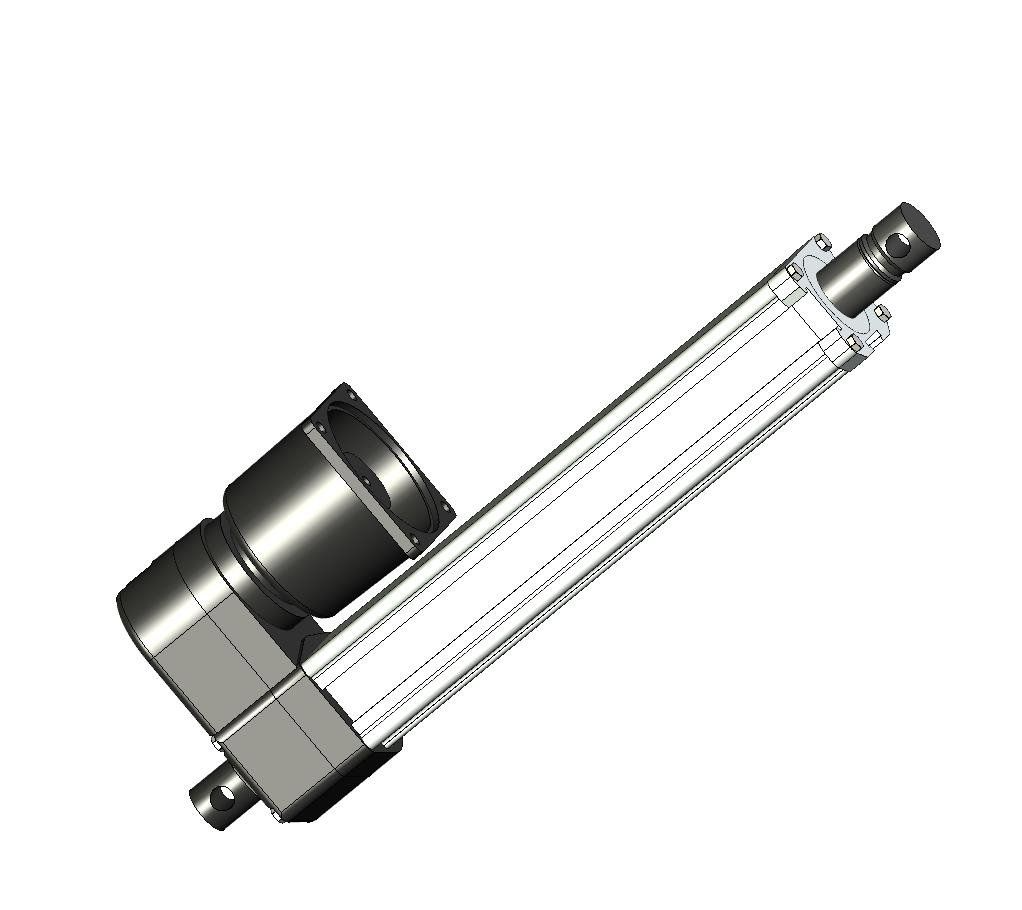

Electrak FA14 Electric Cylinder
Original Electrak FA14 electric cylinder from Thomson Industries.
The Electrak FA14 features a compact design and can be fitted with any suitable motor. The aluminum housing is rust-resistant and suitable for use in all types of vehicles.
It is driven by a trapezoidal screw drive or a ball screw drive. To maintain its position, the Electrak FA14 has a wrap spring brake. All gears are made of steel.
Elektrozylinder Electrak FA14
Technical data
- Thread type: Trapezoidal thread (A) or ball screw (B)
- Anti-rotation device: Yes
- Manual override: Optional (HW)
- Holding brake: Integrated loop spring brake
- Limit switch: External limit switches (accessory)
- Measuring system: Optional potentiometer (PO)
- Certificate: CE
- Duty cycle at full load: 25%
- Operating temperature: -25 to +65 °C (optionally down to -40 °C)
- Axial play: 1.0 mm
- Protection class: IP65
Accesories
- Limit switches: NO, NC
- Mounting: Bolts, fork brackets
Electrak FA14 Electric Cylinder with Trapezoidal Screw Drive
- Speed: 1 – 100 mm/s
- Feed force: max. 2250 N
- Potentiometer: optional
- Limit switch: optional
- Stroke: 50 – 600 mm (2 – 24 inches)

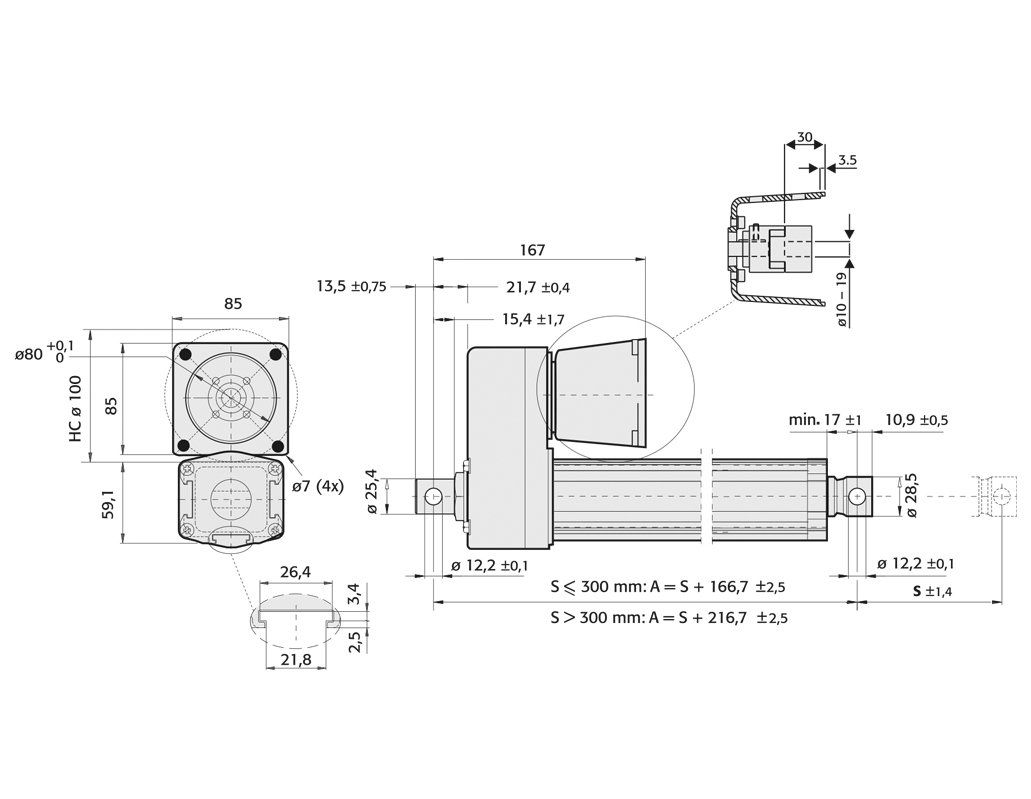

- Dimensions: All FA14 cylinders with trapezoidal screw drives are identical in design.
| FA14-05A65M | FA14-10A65M | FA14-20A65M | Stroke (mm) | STEP-File |
|---|---|---|---|---|
| FA14-05A65M-05 | FA14-10A65M-05 | FA14-20A65M-05 | 50 | FA14-…A65-05MON |
| FA14-05A65M-10 | FA14-10A65M-10 | FA14-20A65M-10 | 100 | FA14-…A65-10MON |
| FA14-05A65M-15 | FA14-10A65M-15 | FA14-20A65M-15 | 150 | FA14-…A65-15MON |
| FA14-05A65M-20 | FA14-10A65M-20 | FA14-20A65M-20 | 200 | FA14-…A65-20MON |
| FA14-05A65M-25 | FA14-10A65M-25 | FA14-20A65M-25 | 250 | FA14-…A65-25MON |
| FA14-05A65M-30 | FA14-10A65M-30 | FA14-20A65M-30 | 300 | FA14-…A65-30MON |
| FA14-05A65M-35 | FA14-10A65M-35 | FA14-20A65M-35 | 350 | FA14-…A65-35MON |
| FA14-05A65M-40 | FA14-10A65M-40 | FA14-20A65M-40 | 400 | FA14-…A65-40MON |
| FA14-05A65M-45 | FA14-10A65M-45 | FA14-20A65M-45 | 450 | FA14-…A65-45MON |
| FA14-05A65M-50 | FA14-10A65M-50 | FA14-20A65M-50 | 500 | FA14-…A65-50MON |
| FA14-05A65M-55 | FA14-10A65M-55 | FA14-20A65M-55 | 550 | FA14-…A65-55MON |
| FA14-05A65M-60 | FA14-10A65M-60 | FA14-20A65M-60 | 600 | FA14-…A65-60MON |
Electrak FA14 Electric Cylinder with Ball Screw Drive
- Speed: max. 100 mm/s
- Feed force: max. 10.000 N
- Potentiometer: optional
- Limit switch: optional
- Stroke: 100 – 600 mm (4 – 24 inches)

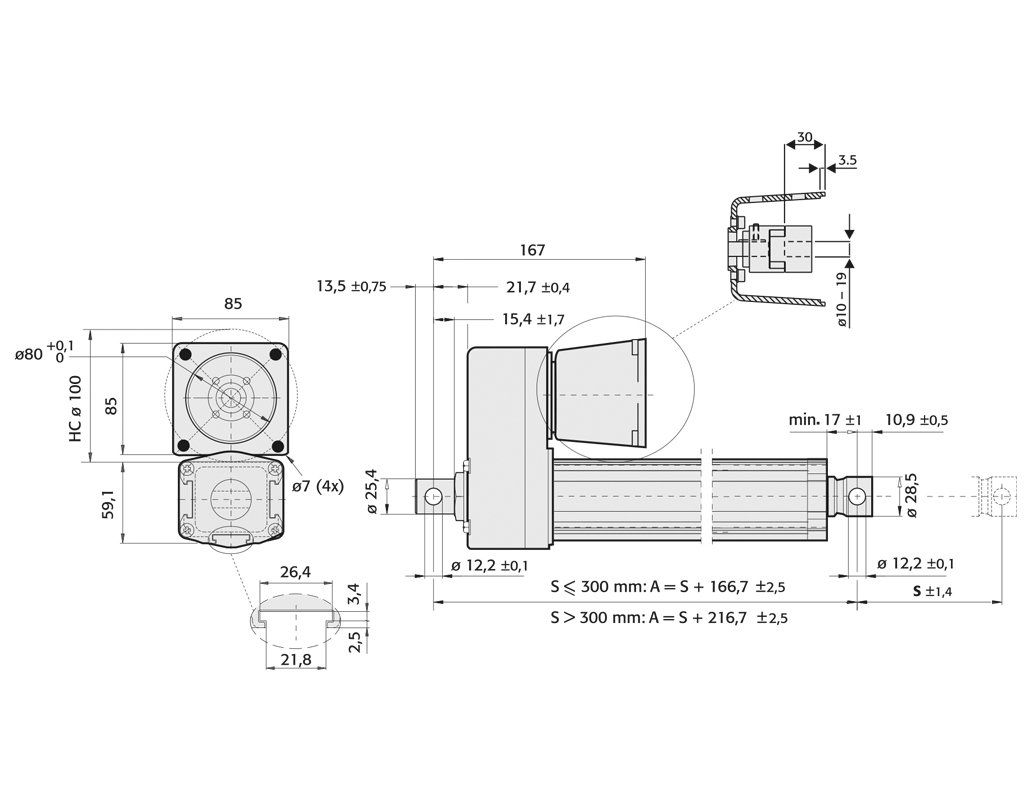

- Dimensions: All FA14 cylinders with ball screw drives are identical in design.
| FA14-05B65M | FA14-10B65M | FA14-20B65M | FA14-21B65M | Stroke (mm) | STEP-File |
|---|---|---|---|---|---|
| FA14-05B65M-05 | FA14-10B65M-05 | FA14-20B65M-05 | FA14-21B65M-05 | 50 | FA14-…B65M-05MON |
| FA14-05B65M-10 | FA14-10B65M-10 | FA14-20B65M-10 | FA14-21B65M-10 | 100 | FA14-…B65M-10MON |
| FA14-05B65M-15 | FA14-10B65M-15 | FA14-20B65M-15 | FA14-21B65M-15 | 150 | FA14-…B65M-15MON |
| FA14-05B65M-20 | FA14-10B65M-20 | FA14-20B65M-20 | FA14-21B65M-20 | 200 | FA14-…B65M-20MON |
| FA14-05B65M-25 | FA14-10B65M-25 | FA14-20B65M-25 | FA14-21B65M-25 | 250 | FA14-…B65M-25MON |
| FA14-05B65M-30 | FA14-10B65M-30 | FA14-20B65M-30 | FA14-21B65M-30 | 300 | FA14-…B65M-30MON |
| FA14-05B65M-35 | FA14-10B65M-35 | FA14-20B65M-35 | FA14-21B65M-35 | 350 | FA14-…B65M-35MON |
| FA14-05B65M-40 | FA14-10B65M-40 | FA14-20B65M-40 | FA14-21B65M-40 | 400 | FA14-…B65M-40MON |
| FA14-05B65M-45 | FA14-10B65M-45 | FA14-20B65M-45 | FA14-21B65M-45 | 450 | FA14-…B65M-45MON |
| FA14-05B65M-50 | FA14-10B65M-50 | FA14-20B65M-50 | FA14-21B65M-50 | 500 | FA14-…B65M-50MON |
| FA14-05B65M-55 | FA14-10B65M-55 | FA14-20B65M-55 | FA14-21B65M-55 | 550 | FA14-…B65M-55MON |
| FA14-05B65M-60 | FA14-10B65M-60 | FA14-20B65M-65 | FA14-21B65M-60 | 600 | FA14-…B65M-60MON |
