Electrak 1 Electric Cylinder (LA1)

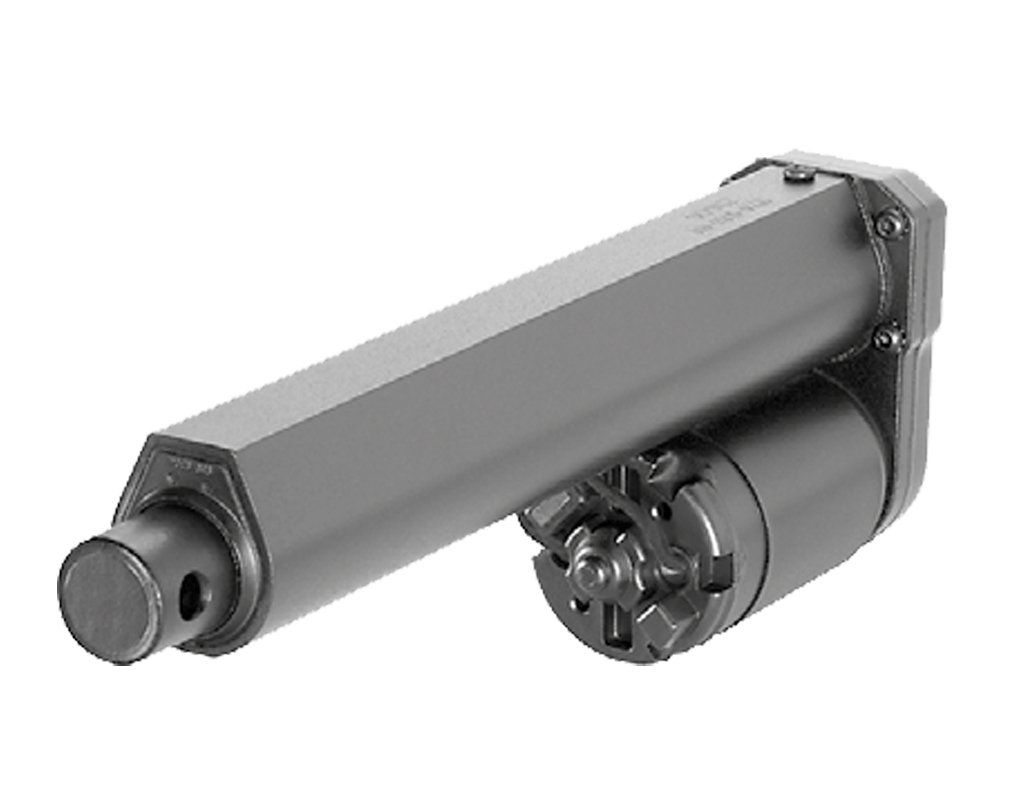

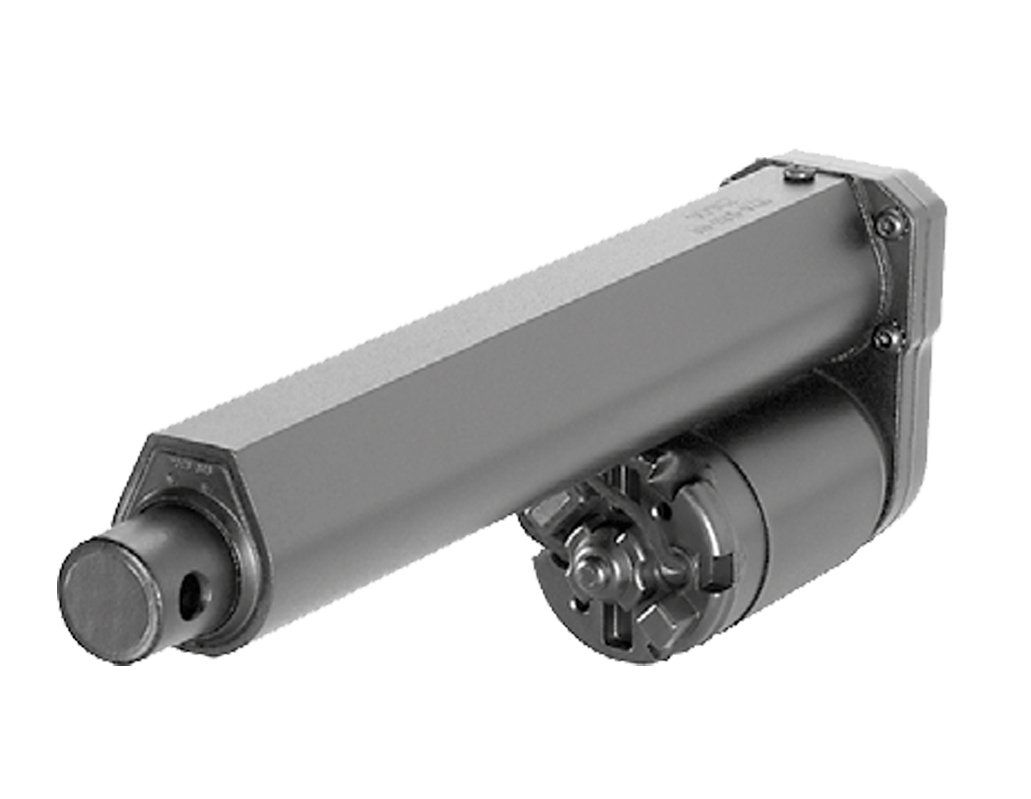

Original Electrak 1 electric cylinder (formerly LA1) from Thomson.
The Electrak 1 has a very compact design with a robust motor. The aluminum housing is relatively rust-resistant and suitable for use in all types of vehicles.
Built-in limit switches reliably stop the Electrak 1. It is driven by a trapezoidal screw drive and is self-locking. All gears are made of steel. The Electrak 1 electric cylinders are available in 12, 24, and 36 V DC and are maintenance-free.
Elektrozylinder Electrak 1 (LA1)
Technical data
- Thread type: Trapezoidal
- Anti-rotation device: None
- Manual override: None
- Holding brake: None, self-locking
- Limit switch: Yes, fixed
- Motor protection: Thermal switch, self-resetting
- Motor connection: Pack-Con connector 8911773, with terminals 6294511
- Certificate: CE
- Duty cycle at full load: 25%
- Operating temperature: -25 to +65 °C (optionally down to -40 °C)
- Axial play: 0.9 mm
- Cable cross-section: 1 mm²
- Protection class: IP65
Accesories
- Control unit: AC-247 ELS (input voltage 12 or 24 V DC)
- Control unit: DCG-150 (input voltage 230 V AC)

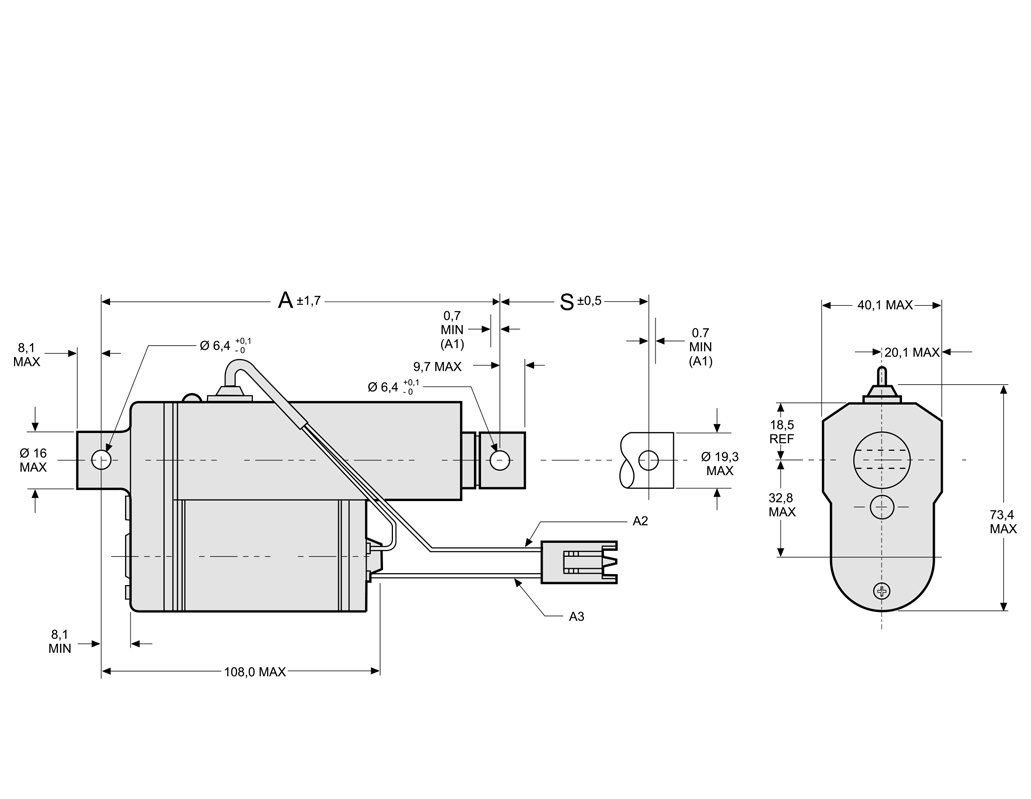

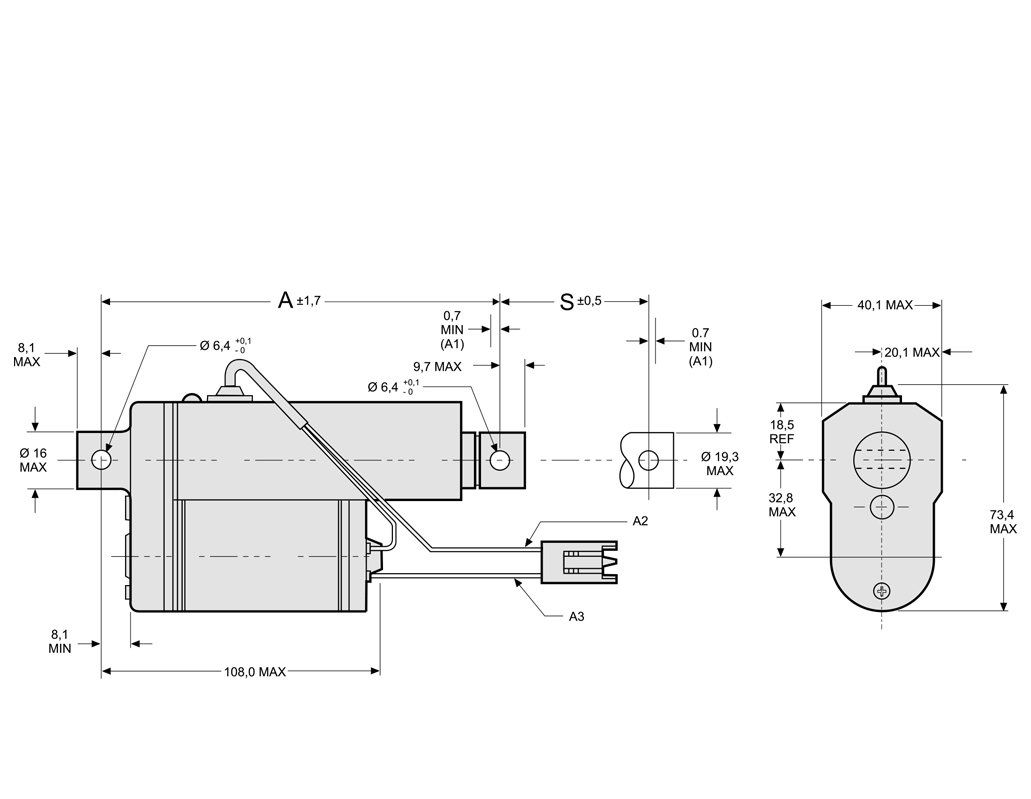

| Type 12 VDC | Type 24 VDC | Type 36 VDC | Hub (mm) | Dynamic force (N) | Static force (N) | Speed (mm/s) | A (mm) | CAD |
|---|---|---|---|---|---|---|---|---|
| S12-09A04-01 | S24-09A04-01 | S36-09A04-01 | 20,8 | 110 | 13000 | 52 -75 | 134,5 | LA1-1 |
| S12-09A04-02 | S24-09A04-02 | S36-09A04-02 | 46,2 | 110 | 13000 | 52 -75 | 159,9 | LA1-2 |
| S12-09A04-03 | S24-09A04-03 | S36-09A04-03 | 71,6 | 110 | 13000 | 52 -75 | 185,3 | LA1-3 |
| S12-09A04-04 | S24-09A04-04 | S36-09A04-04 | 97,0 | 110 | 13000 | 52 -75 | 210,7 | LA1-4 |
| S12-09A04-05 | S24-09A04-05 | S36-09A04-05 | 122,4 | 110 | 13000 | 52 -75 | 236,1 | LA1-5 |
| S12-09A04-06 | S24-09A04-06 | S36-09A04-06 | 147,8 | 110 | 13000 | 52 -75 | 261,5 | LA1-6 |
| S12-09A08-01 | S24-09A08-01 | S36-09A08-01 | 20,8 | 225 | 13000 | 33 – 45 | 134,5 | LA1-1 |
| S12-09A08-02 | S24-09A08-02 | S36-09A08-02 | 46,2 | 225 | 13000 | 33 – 45 | 159,9 | LA1-2 |
| S12-09A08-03 | S24-09A08-03 | S36-09A08-03 | 71,6 | 225 | 13000 | 33 – 45 | 185,3 | LA1-3 |
| S12-09A08-04 | S24-09A08-04 | S36-09A08-04 | 97,0 | 225 | 13000 | 33 – 45 | 210,7 | LA1-4 |
| S12-09A08-05 | S24-09A08-05 | S36-09A08-05 | 122,4 | 225 | 13000 | 33 – 45 | 236,1 | LA1-5 |
| S12-09A08-06 | S24-09A08-06 | S36-09A08-06 | 147,8 | 225 | 13000 | 33 – 45 | 261,5 | LA1-6 |
| S12-17A08-01 | S24-17A08-01 | S36-17A08-01 | 20,8 | 340 | 13000 | 17 -26 | 134,5 | LA1-1 |
| S12-17A08-02 | S24-17A08-02 | S36-17A08-02 | 46,2 | 340 | 13000 | 17 -26 | 159,9 | LA1-2 |
| S12-17A08-03 | S24-17A08-03 | S36-17A08-03 | 71,6 | 340 | 13000 | 17 -26 | 185,3 | LA1-3 |
| S12-17A08-04 | S24-17A08-04 | S36-17A08-04 | 97,0 | 340 | 13000 | 17 -26 | 210,7 | LA1-4 |
| S12-17A08-05 | S24-17A08-05 | S36-17A08-05 | 122,4 | 340 | 13000 | 17 -26 | 236,1 | LA1-5 |
| S12-17A08-06 | S24-17A08-06 | S36-17A08-06 | 147,8 | 340 | 13000 | 17 -26 | 261,5 | LA1-6 |
| S12-17A16-01 | S24-17A16-01 | S36-17A16-01 | 20,8 | 340 | 13000 | 7 – 14 | 134,5 | LA1-1 |
| S12-17A16-02 | S24-17A16-02 | S36-17A16-02 | 46,2 | 340 | 13000 | 7 – 14 | 159,9 | LA1-2 |
| S12-17A16-03 | S24-17A16-03 | S36-17A16-03 | 71,6 | 340 | 13000 | 7 – 14 | 185,3 | LA1-3 |
| S12-17A16-04 | S24-17A16-04 | S36-17A16-04 | 97,0 | 340 | 13000 | 7 – 14 | 210,7 | LA1-4 |
| S12-17A16-05 | S24-17A16-05 | S36-17A16-05 | 122,4 | 340 | 13000 | 7 – 14 | 236,1 | LA1-5 |
| S12-17A16-06 | S24-17A16-06 | S36-17A16-06 | 147,8 | 340 | 13000 | 7 – 14 | 261,5 | LA1-6 |
