Electrak 5 Electric Cylinder (LA5)

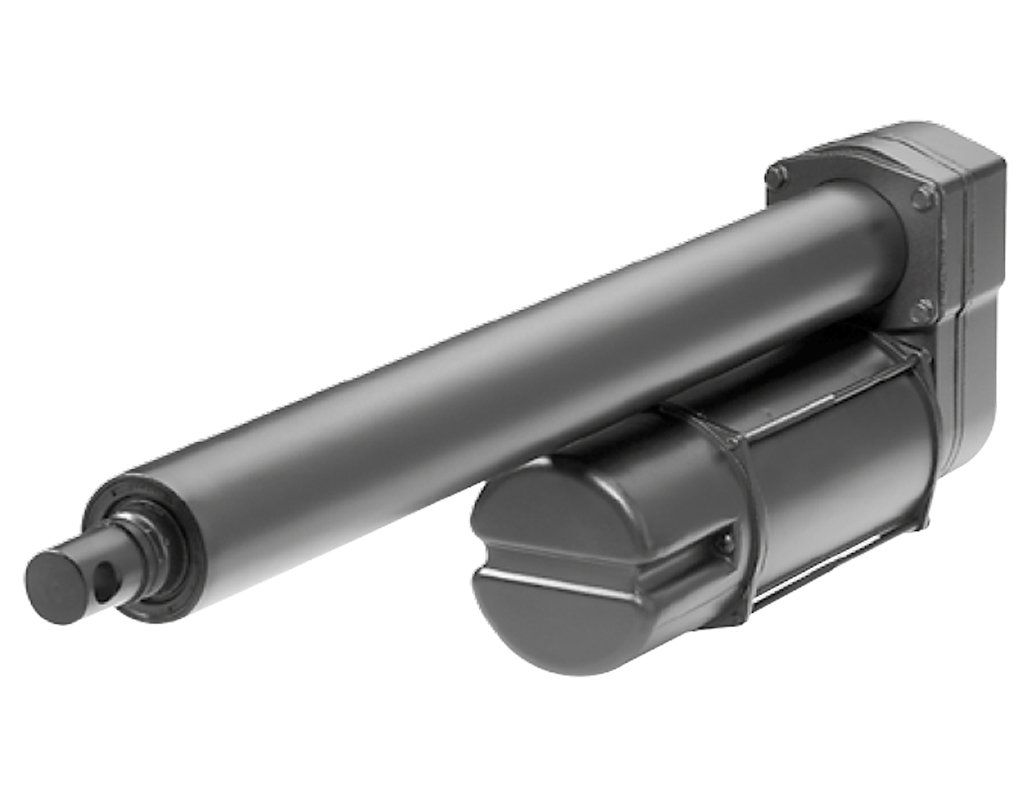

Original Electrak 5 electric cylinder (formerly LA5) from Thomson.
The Electrak 5 has a very compact design with a robust motor. The aluminum housing is relatively rust-resistant and suitable for use in all types of vehicles.
It is driven by a trapezoidal screw drive or a ball screw drive. To maintain its position, the Electrak 5 is equipped with a wrap spring brake. All gears are made of steel. The Electrak 5 electric cylinders are available with 110, 230, and 400 V AC motors.
Elektrozylinder Electrak 5 (LA5)
Technical data
- Thread type: Trapezoidal thread or ball screw
- Anti-rotation device: None
- Manual override: Optional (HW)
- Holding brake: Optional electric brake (B)
- Limit switch: None
- Motor protection: Thermal switch, self-resetting
- Motor connection: Optional plug
- Certificate: CE
- Duty cycle at full load: 25%
- Operating temperature: -25 to +65 °C (optionally down to -40 °C)
- Axial play: 1.0 mm
- Cable cross-section: 1.5 mm²
- Protection class: IP45
Accesories
- Control unit: DPDT switch
Electrak 5 Electric Cylinder with Trapezoidal Screw Drive
- Motor A12: 115 VAC,
- Motor A22: 230 VAC
- Motor A42: 400 VAC
- Speed: 11 – 54 mm/s
- Feed force: 1100 – 2250 N
- Potentiometer: optional
- Stroke: 100 – 600 mm (4 – 24 inches)

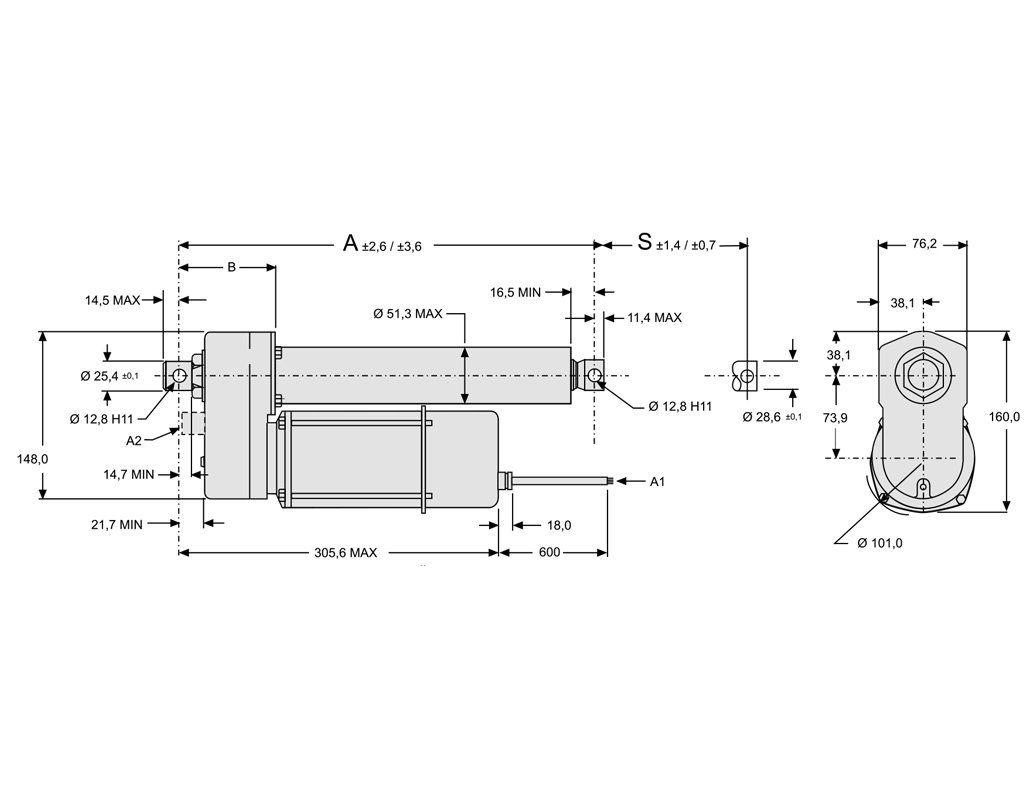

- Dimensions: The A22 (230 V) and A42 (400 V) electric cylinders have identical dimensions.
| A22-05A5 | A42-05A5 | A22-10A5 | A42-10A5 | A22-20A5 | A42-20A5 | Stroke(mm) | STEP-File without potentiometer | STEP-File with potentiometer |
|---|---|---|---|---|---|---|---|---|
| A22-05A5-04 | A42-05A5-04 | A22-10A5-04 | A42-10A5-04 | A22-20A5-04 | A42-20A5-04 | 101,6 | A…A5-04MON | A…A5-04MONPO |
| A22-05A5-06 | A42-05A5-06 | A22-10A5-06 | A42-10A5-06 | A22-20A5-06 | A42-20A5-06 | 152,4 | A…A5-06MON | A…A5-06MONPO |
| A22-05A5-08 | A42-05A5-08 | A22-10A5-08 | A42-10A5-08 | A22-20A5-08 | A42-20A5-08 | 203,2 | A…A5-08MON | A…A5-08MONPO |
| A22-05A5-10 | A42-05A5-10 | A22-10A5-10 | A42-10A5-10 | A22-20A5-10 | A42-20A5-10 | 254,0 | A…A5-10MON | A…A5-10MONPO |
| A22-05A5-12 | A42-05A5-12 | A22-10A5-12 | A42-10A5-12 | A22-20A5-12 | A42-20A5-12 | 304,8 | A…A5-12MON | A…A5-12MONPO |
| A22-05A5-14 | A42-05A5-14 | A22-10A5-14 | A42-10A5-14 | A22-20A5-14 | A42-20A5-14 | 355,6 | A…A5-14MON | A…A5-14MONPO |
| A22-05A5-16 | A42-05A5-16 | A22-10A5-16 | A42-10A5-16 | A22-20A5-16 | A42-20A5-16 | 406,4 | A…A5-16MON | A…A5-16MONPO |
| A22-05A5-18 | A42-05A5-18 | A22-10A5-18 | A42-10A5-18 | A22-20A5-18 | A42-20A5-18 | 457,2 | A…A5-18MON | A…A5-18MONPO |
| A22-05A5-20 | A42-05A5-20 | A22-10A5-20 | A42-10A5-20 | A22-20A5-20 | A42-20A5-20 | 508,0 | A…A5-20MON | A…A5-20MONPO |
| A22-05A5-24 | A42-05A5-24 | A22-10A5-24 | A42-10A5-24 | A22-20A5-24 | A42-20A5-24 | 609,6 | A…A5-24MON | A…A5-24MONPO |
Electrak 5 Electric Cylinder with Ball Screw Drive
- Motor A12: 115 VAC,
- Motor A22: 230 VAC
- Motor A42: 400 VAC
- Speed: 11 – 54 mm/s
- Feed force: 1100 – 6800 N
- Potentiometer: optional
- Stroke: 100 – 600 mm (4 – 24 Zoll)
- Dimensions: The A22 (230 V) and A42 (400 V) electric cylinders have identical dimensions.
| A22-05B5 | A42-05B5 | A22-10B5 | A42-10B5 | A22-20/21B5 | A42-20/21B5 | Stroke (mm) | STEP-File without potentiometer | STEP-File with potentiometer |
|---|---|---|---|---|---|---|---|---|
| A22-05B5-04 | A42-05A5-04 | A22-10A5-04 | A42-10A5-04 | A22-20A5-04 | A42-20A5-04 | 101,6 | A…B5-04MON | A…B5-04MONPO |
| A22-05B5-06 | A42-05A5-06 | A22-10A5-06 | A42-10A5-06 | A22-20A5-06 | A42-20A5-06 | 152,4 | A…B5-06MON | A…B5-06MONPO |
| A22-05B5-08 | A42-05A5-08 | A22-10A5-08 | A42-10A5-08 | A22-20A5-08 | A42-20A5-08 | 203,2 | A…B5-08MON | A…B5-08MONPO |
| A22-05B5-10 | A42-05A5-10 | A22-10A5-10 | A42-10A5-10 | A22-20A5-10 | A42-20A5-10 | 254,0 | A…B5-10MON | A…B5-10MONPO |
| A22-05B5-12 | A42-05A5-12 | A22-10A5-12 | A42-10A5-12 | A22-20A5-12 | A42-20A5-12 | 304,8 | A…B5-12MON | A…B5-12MONPO |
| A22-05B5-14 | A42-05A5-14 | A22-10A5-14 | A42-10A5-14 | A22-20A5-14 | A42-20A5-14 | 355,6 | A…B5-14MON | A…B5-14MONPO |
| A22-05B5-16 | A42-05A5-16 | A22-10A5-16 | A42-10A5-16 | A22-20A5-16 | A42-20A5-16 | 406,4 | A…B5-16MON | A…B5-16MONPO |
| A22-05B5-18 | A42-05A5-18 | A22-10A5-18 | A42-10A5-18 | A22-20A5-18 | A42-20A5-18 | 457,2 | A…B5-18MON | A…B5-18MONPO |
| A22-05B5-20 | A42-05A5-20 | A22-10A5-20 | A42-10A5-20 | A22-20A5-20 | A42-20A5-20 | 508,0 | A…B5-20MON | A…B5-20MONPO |
| A22-05B5-24 | A42-05A5-24 | A22-10A5-24 | A42-10A5-24 | A22-20A5-24 | A42-20A5-24 | 609,6 | A…B5-24MON | A…B5-24MONPO |
