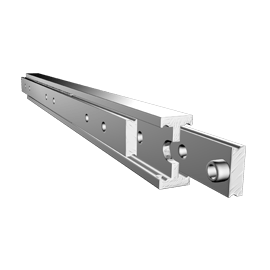

Telescopic Rail LI-DTP50

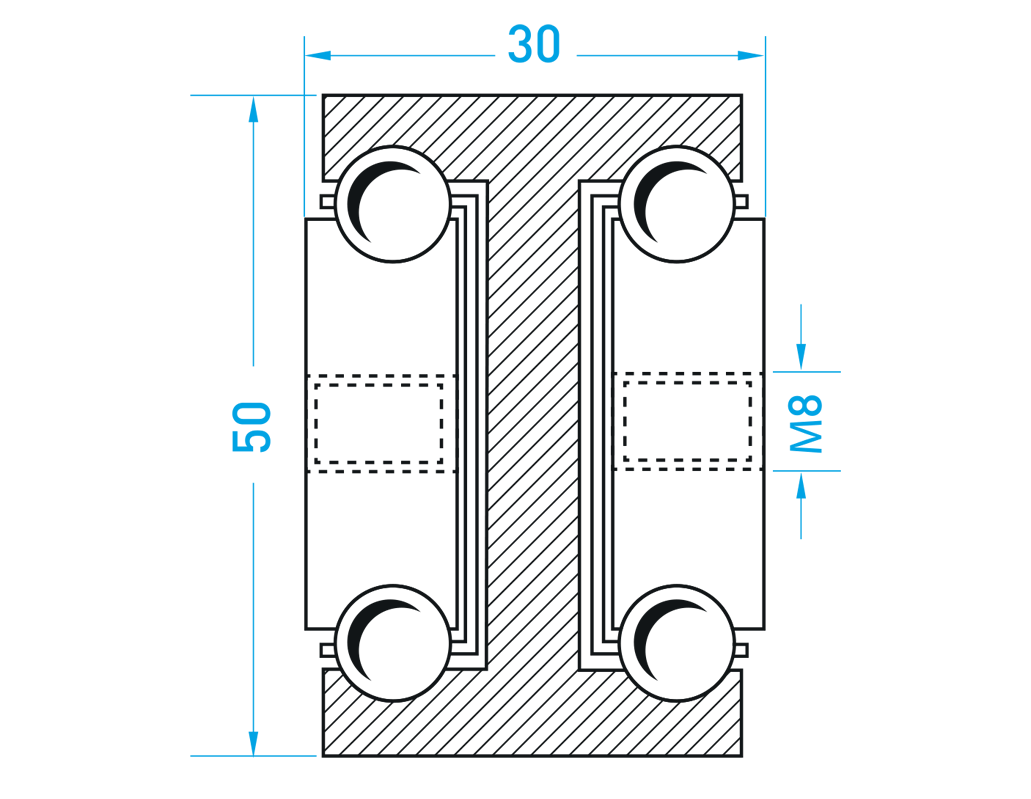

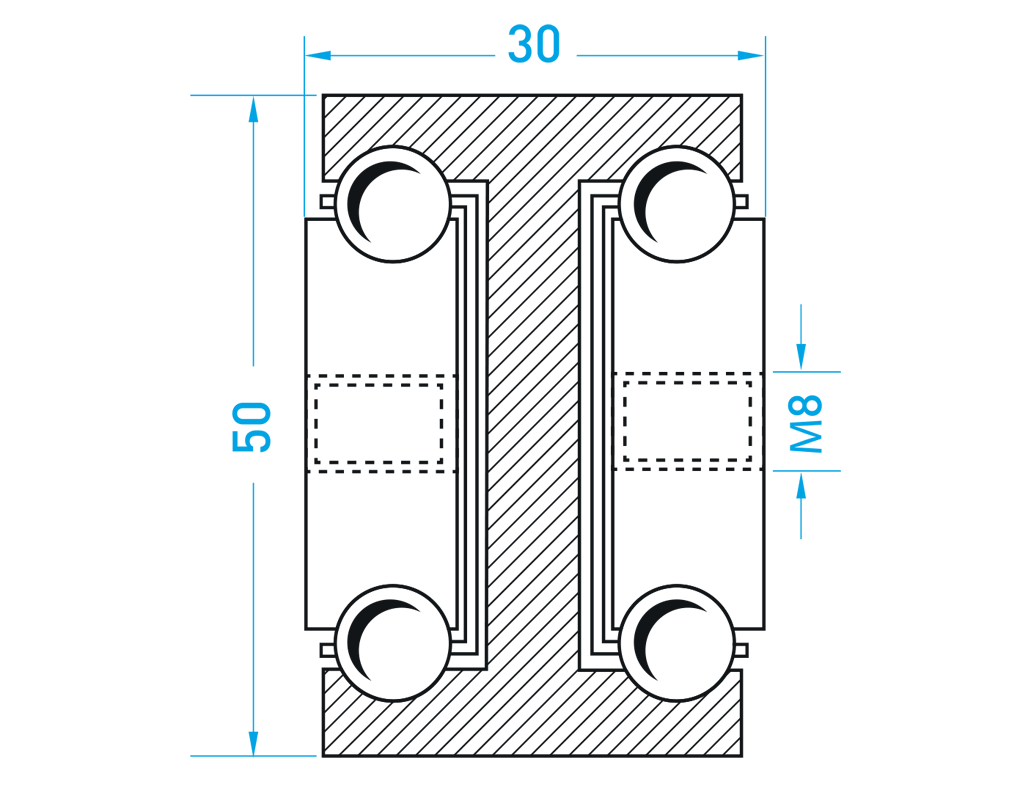

Single full-extension rail with dimensions of 50×30 mm, designed for heavy-duty applications. The material is not hardened. Load capacities are calculated for a service life of 100,000 cycles at full load. We supply these rails in C45 steel or, upon request, in aluminum or stainless steel.

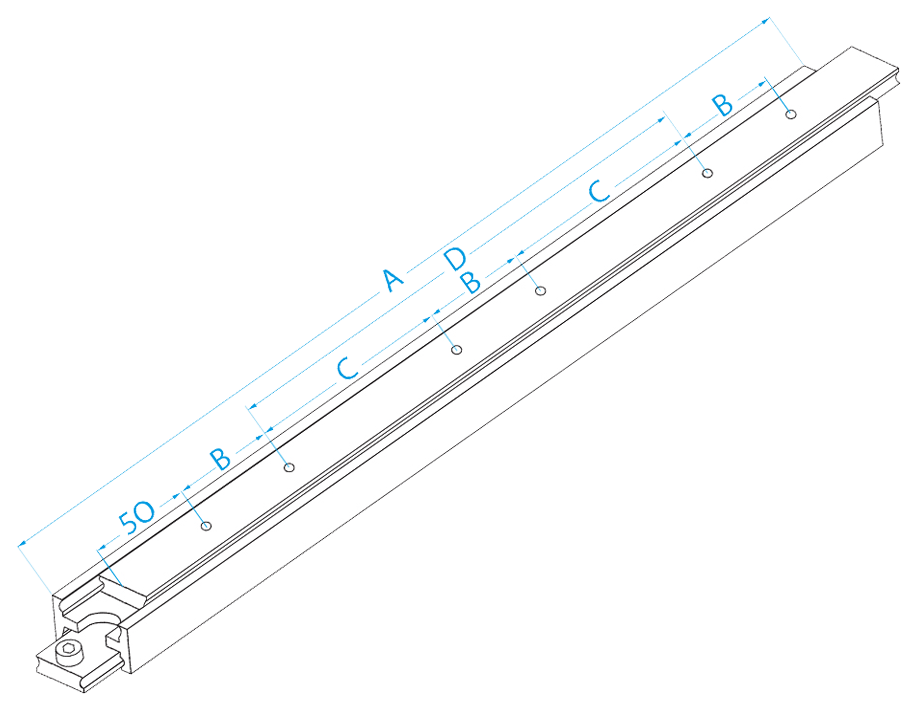

| Designation | Installation length (mm) | Load capacity (kg) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) |
|---|---|---|---|---|---|---|
| LI-DTP50-030 | 300 | 300 | 300 | 50 | – | 100 |
| LI-DTP50-035 | 350 | 310 | 350 | 50 | – | 150 |
| LI-DTP50-040 | 400 | 320 | 400 | 50 | – | 200 |
| LI-DTP50-045 | 450 | 330 | 450 | 50 | – | 250 |
| LI-DTP50-050 | 500 | 350 | 500 | 50 | – | 300 |
| LI-DTP50-055 | 550 | 380 | 550 | 50 | 150 | – |
| LI-DTP50-060 | 600 | 400 | 600 | 50 | 175 | – |
| LI-DTP50-065 | 650 | 395 | 650 | 50 | 200 | – |
| LI-DTP50-070 | 700 | 390 | 700 | 50 | 225 | – |
| LI-DTP50-075 | 750 | 385 | 750 | 50 | 250 | – |
| LI-DTP50-080 | 800 | 380 | 800 | 50 | 275 | – |
| LI-DTP50-085 | 850 | 375 | 850 | 50 | 300 | – |
| LI-DTP50-090 | 900 | 370 | 900 | 50 | 325 | – |
| LI-DTP50-095 | 950 | 365 | 950 | 50 | 350 | – |
| LI-DTP50-100 | 1000 | 360 | 1000 | 50 | 375 | – |
| LI-DTP50-105 | 1050 | 355 | 1050 | 50 | 400 | – |
| LI-DTP50-110 | 1100 | 350 | 1100 | 50 | 425 | – |
| LI-DTP50-115 | 1150 | 345 | 1150 | 50 | 450 | – |
| LI-DTP50-120 | 1200 | 340 | 1200 | 50 | 475 | – |
| LI-DTP50-125 | 1250 | 335 | 1250 | 50 | 500 | – |
| LI-DTP50-130 | 1300 | 330 | 1300 | 50 | 525 | – |
| LI-DTP50-135 | 1350 | 325 | 1350 | 50 | 550 | – |
| LI-DTP50-140 | 1400 | 320 | 1400 | 50 | 575 | – |
