LI-DTP70 Telescopic Rail

Telescopic Rail LI-DTP70

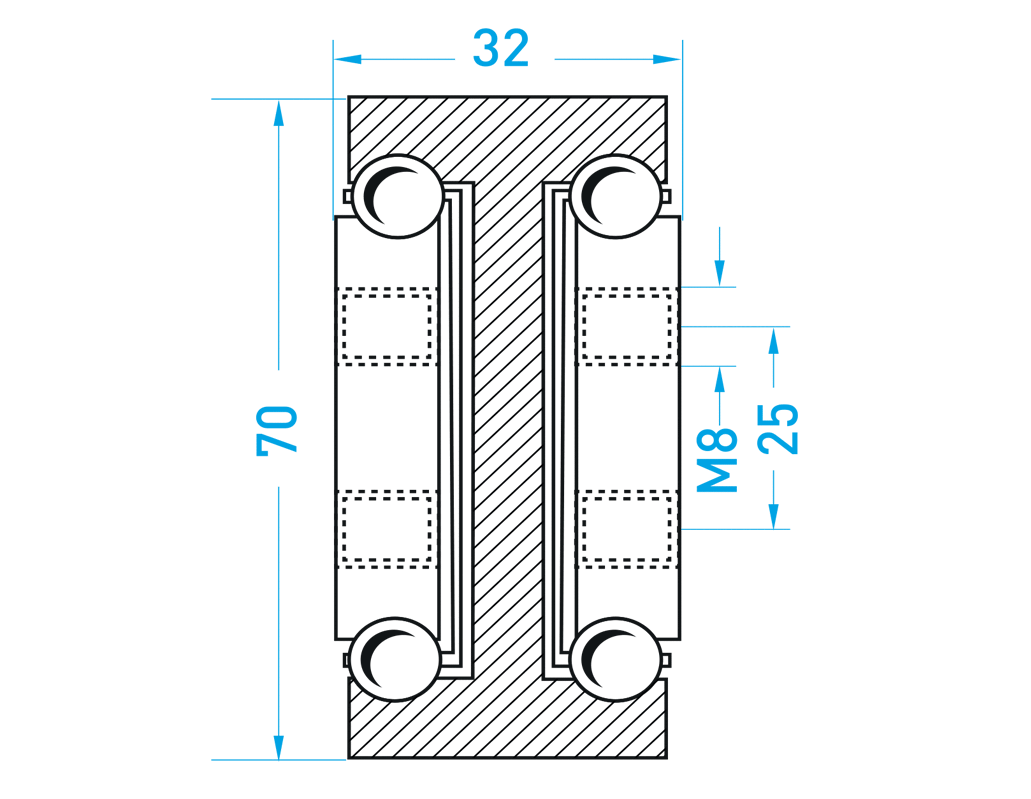

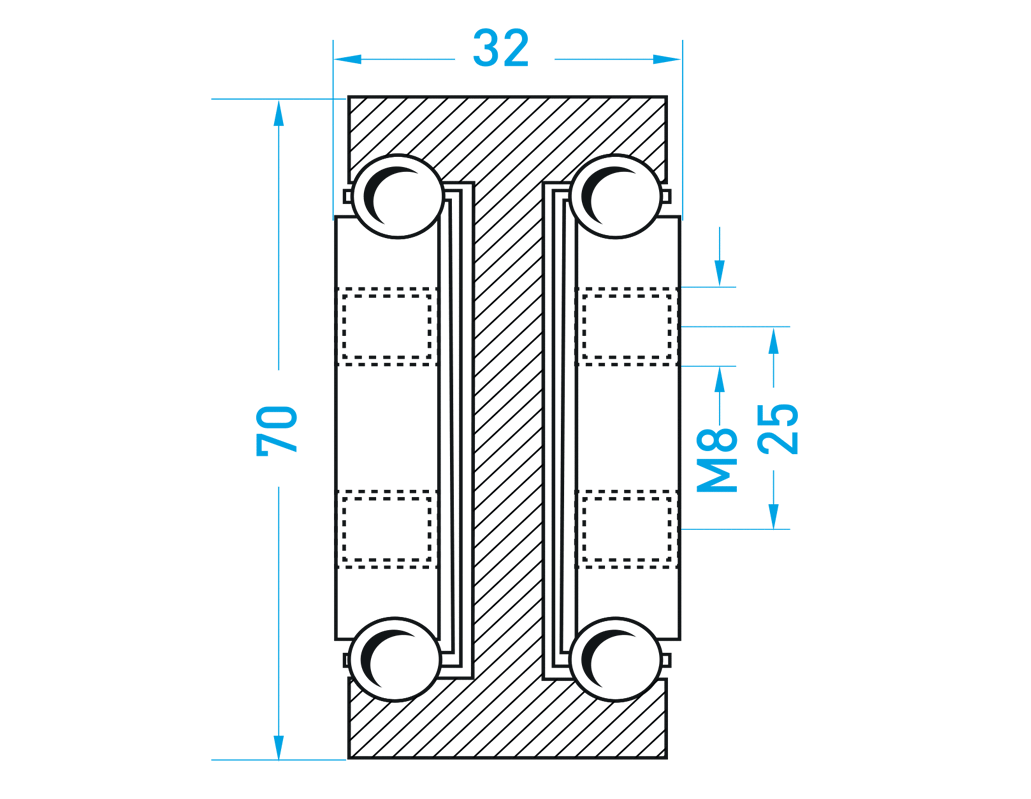

Single full-extension rail with dimensions of 70×32 mm, designed for heavy-duty applications. The material is not hardened. Load capacities are calculated for a service life of 100,000 cycles at full load. We supply these rails in C45 steel or, upon request, in aluminum or stainless steel.

Datenblatt LI-DTP70

Data Sheet LI-DTP70

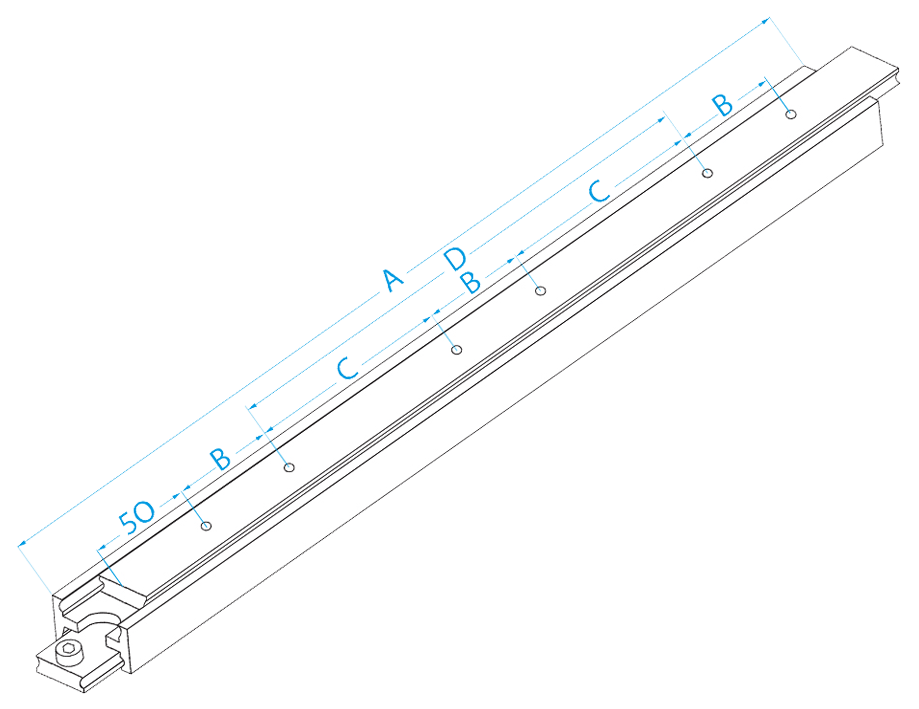

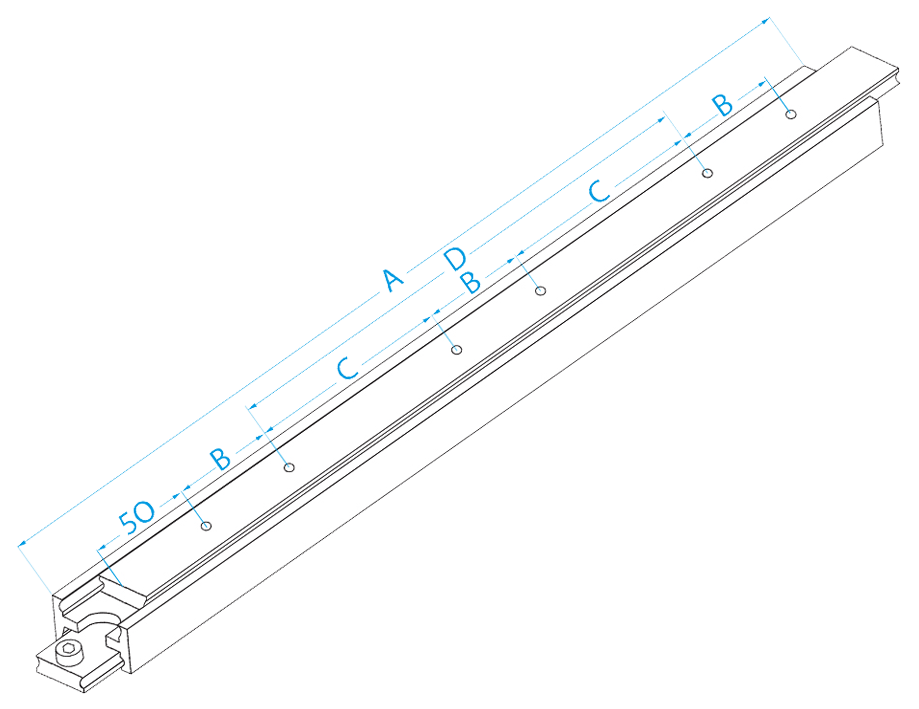

Designation	Installation length (mm)	Load capacity (kg)	Dimension A (mm)	Dimension B (mm)	Dimension C (mm)	Dimension D (mm)
LI-DTP70-040	400	400	400	50	–	200
LI-DTP70-045	450	410	450	50	–	250
LI-DTP70-050	500	420	500	50	–	300
LI-DTP70-055	550	430	550	50	150	–
LI-DTP70-060	600	440	600	50	175	–
LI-DTP70-065	650	450	650	50	200	–
LI-DTP70-070	700	500	700	50	225	–
LI-DTP70-075	750	550	750	50	250	–
LI-DTP70-080	800	560	800	50	275	–
LI-DTP70-085	850	580	850	50	300	–
LI-DTP70-090	900	600	900	50	325	–
LI-DTP70-095	950	620	950	50	350	–
LI-DTP70-100	1000	650	1000	50	375	–
LI-DTP70-105	1050	660	1050	50	400	–
LI-DTP70-110	1100	660	1100	50	425	–
LI-DTP70-115	1150	650	1150	50	450	–
LI-DTP70-120	1200	640	1200	50	475	–
LI-DTP70-125	1250	620	1250	50	500	–
LI-DTP70-130	1300	600	1300	50	525	–
LI-DTP70-135	1350	580	1350	50	550	–
LI-DTP70-140	1400	560	1400	50	575	–
LI-DTP70-145	1450	540	1450	50	600	–
LI-DTP70-150	1500	520	1500	50	625	–
LI-DTP70-155	1550	500	1550	50	650	–
LI-DTP70-160	1600	480	1600	50	675	–
LI-DTP70-165	1650	460	1650	50	700	–
LI-DTP70-170	1700	440	1700	100	650	–
LI-DTP70-175	1750	420	1750	100	675	–
LI-DTP70-180	1800	400	1800	100	700	–
LI-DTP70-185	1850	380	1850	100	725	–
LI-DTP70-190	1900	360	1900	100	750	–
LI-DTP70-195	1950	340	1950	100	775	–
LI-DTP70-200	2000	320	2000	100	800	–

Telescopic Rail LI-DTP70

Data Sheet LI-DTP70

Extension length = Installation length / Total length = Installation length + Extension length
