Linear Ball Bearings LME..AJ
The LME..AJ linear ball bearings feature a slotted outer shell, which allows them to be preloaded or adjusted for clearance in suitable housings. This bearing type is widely used in Europe and differs in its dimensions from the versions commonly applied in the USA and Asia.
In Asia, linear ball bearings are mostly sold under the designations SM..AJ and LM..AJ (metric dimensions).
In the Americas, they are sold under the designation SW..AJ (inch dimensions).

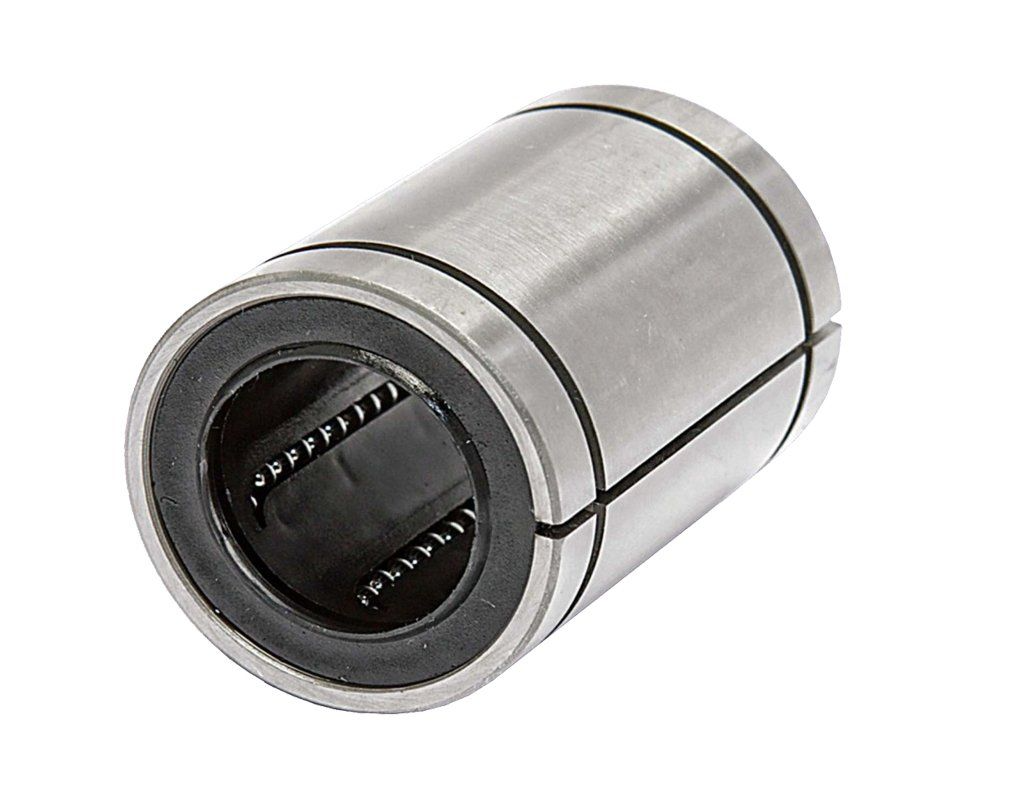

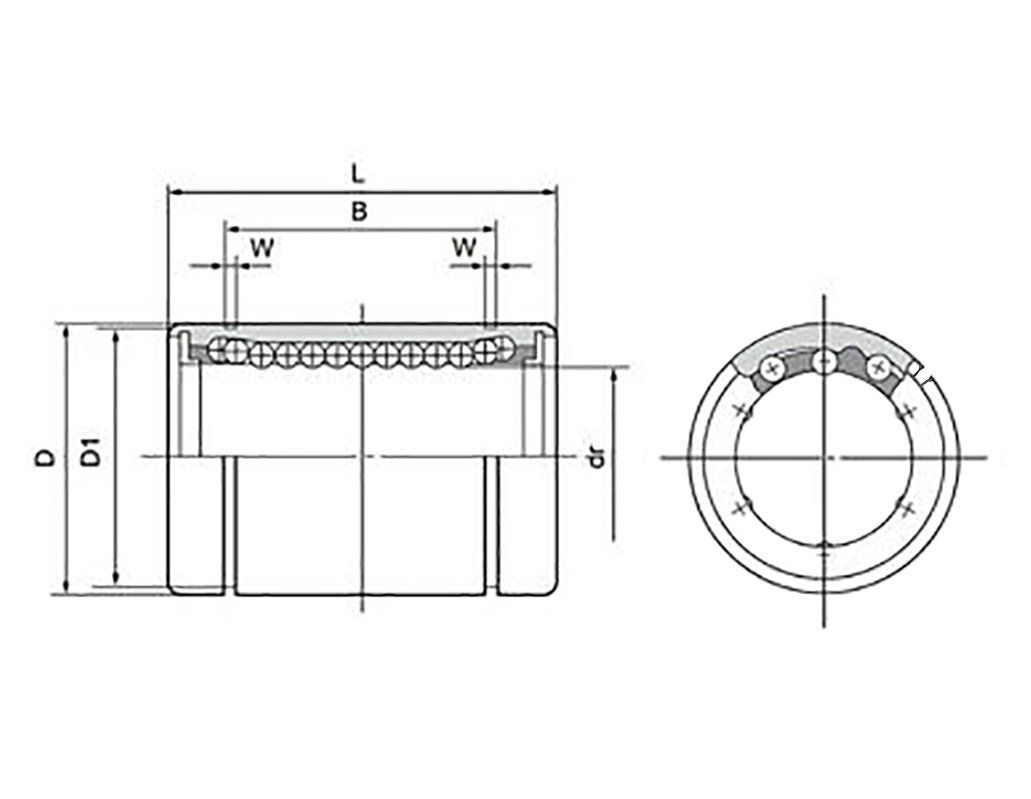

The following images provide an overview of the LME..AJ linear ball bearings commonly used in Europe.
- Outer shell material: Plastic cage with inserted raceway segments made of 100Cr6 (1.3505)
- Cage material: Plastic
- Balls: 100Cr6 (1.3505)
- Seal: Nitrile rubber (NBR)
Options available on request:
- Chrome-plated raceway segments
- Nickel-plated raceway segments
- Corrosion-resistant balls (1.4125)
- Without seal
- With single seal (U)

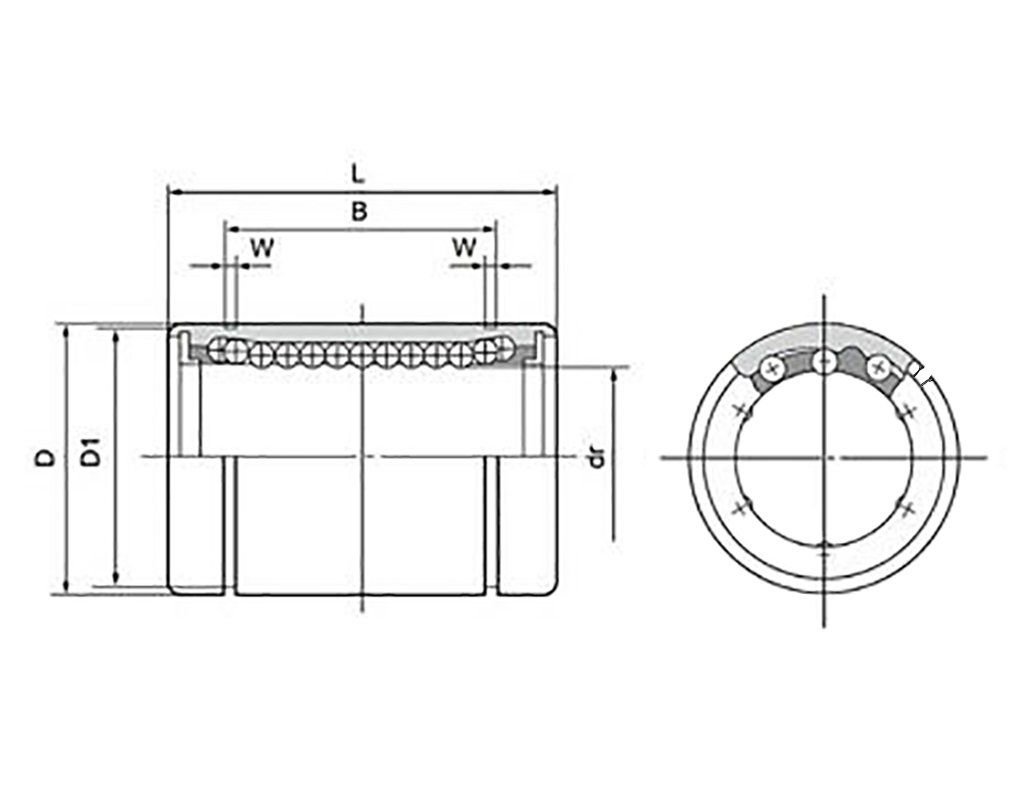

LB-Linearkugellager-LME
| Type (Lintec) | Nippon Bearing | Boschrexroth | INA | d (mm) | D (mm) | L (mm) | Cdyn (N) | Cstat (N) |
|---|---|---|---|---|---|---|---|---|
| LME5UU-AJ | KB5UU-AJ | R061230510 | – | 5 | 12 | 22 | 206 | 265 |
| LME8UU-AJ | KB8UU-AJ | R061230810 | – | 8 | 16 | 25 | 265 | 402 |
| LME10UU-AJ | KB10UU-AJ | R061201010 | – | 10 | 19 | 29 | 372 | 549 |
| LME12UU-AJ | KB12UU-AJ | R061201210 | KBS12PP | 12 | 22 | 32 | 510 | 784 |
| LME16UU-AJ | KB16UU-AJ | R061201610 | KBS16PP | 16 | 26 | 36 | 578 | 892 |
| LME20UU-AJ | KB20UU-AJ | R061202010 | KBS20PP | 20 | 32 | 45 | 862 | 1370 |
| LME25UU-AJ | KB25UU-AJ | R061202510 | KBS25PP | 25 | 40 | 58 | 980 | 1570 |
| LME30UU-AJ | KB30UU-AJ | R061203010 | KBS30PP | 30 | 47 | 68 | 1570 | 2740 |
| LME40UU-AJ | KB40UU-AJ | R061204010 | KBS40PP | 40 | 62 | 80 | 2160 | 4020 |
| LME50UU-AJ | KB50UU-AJ | R061205010 | KBS50PP | 50 | 75 | 100 | 3820 | 7940 |
| LME60UU-AJ | KB60UU-AJ | R061206010 | – | 60 | 90 | 125 | 4700 | 9800 |
| LME80UU-AJ | KB80UU-AJ | R061208010 | – | 80 | 120 | 165 | 7350 | 16000 |
