Miniature Recirculating Ball Bearing Guide MR…

Miniature recirculating ball bearing guides of the MR series feature two ball circuits for efficient load transmission with minimal friction.

To optimize running characteristics and service life, the following options are available:

  • SS Standard seal for effective protection of the carriage from contamination
  • ZZ Standard seal with long-term lubrication unit
  • SU Standard seal with additional longitudinal seal on the bottom
  • ZU All-round seal with additional long-term lubrication unit
  • EE Standard seal with steel end caps for high-speed operation
  • EZ Standard seal with steel end caps and long-term lubrication unit
  • EU Standard seal with longitudinal seal, steel end caps, and steel longitudinal protection
  • UZ Standard seal with longitudinal seal, steel end caps, steel longitudinal protection, and long-term lubrication unit
Miniatur_Profilschienen-neu
TypeH (mm)W (mm)L (mm)Cdyn (N)Cstat (N)
MR15-ML-SS16326053509080
MR15-MN-SS16324338105590
MR15-WL-SS166074,4672512580
MR15-WN-SS166055,350658385
MR12-ML-SS132747,632405630

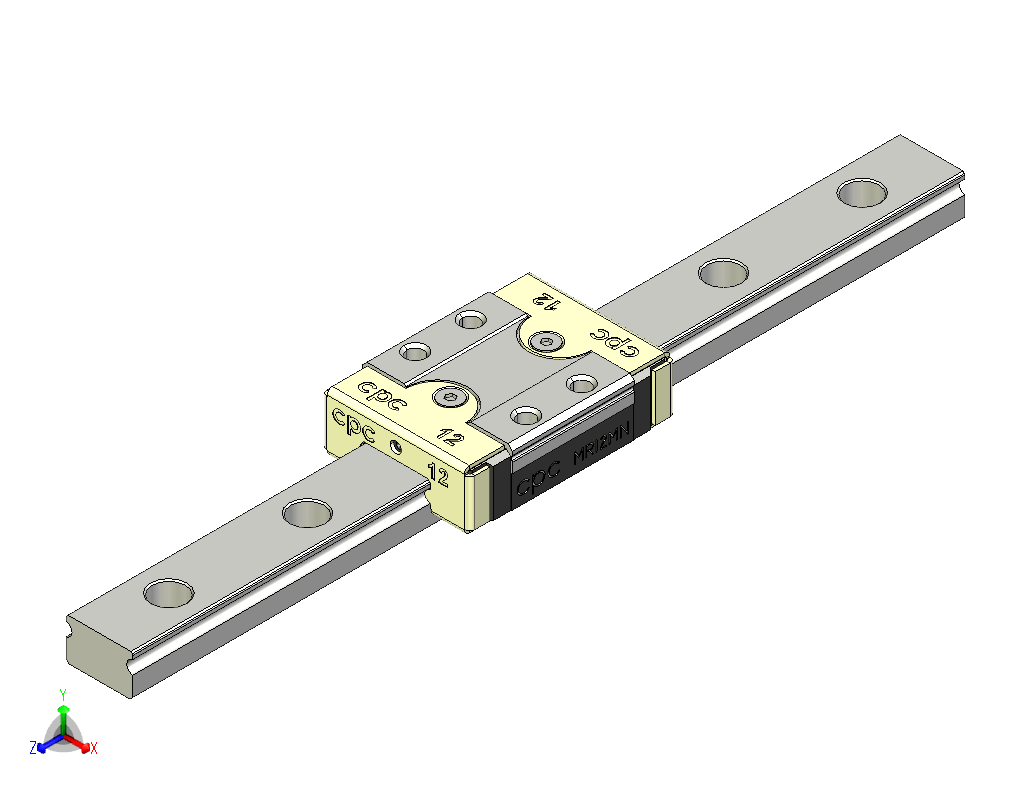

MR12-MN-SS132735,423083465

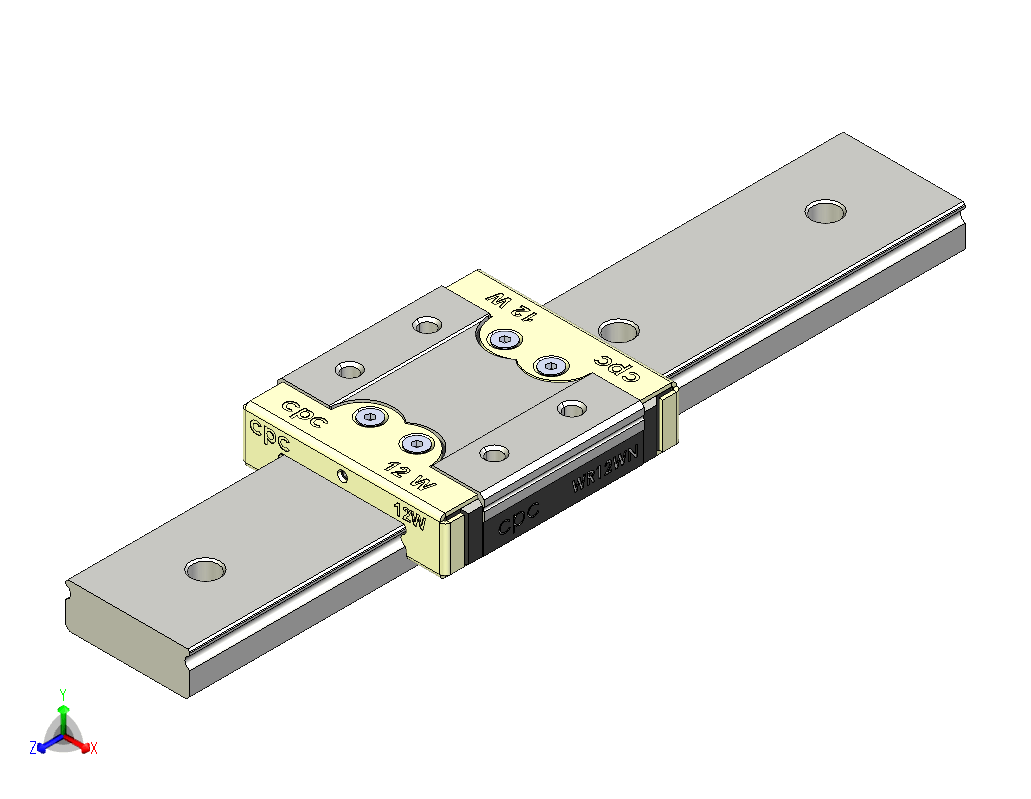

MR12-WL-SS144059,440707800
MR12-WN-SS144044,430655200
MR9-ML-SS102040,921353880
MR9-MN-SS102030,615702495
MR9-WL-SS123050,725504990
MR9-WN-SS123039,120303605
MR7-ML-SS81731,213102440
MR7-MN-SS81723,78901440
MR7-WL-SS92540,515703140
MR7-WN-SS92531,611802095
MR5-ML-SS61219,6470900
MR5-MN-SS61216335550
MR5-WL-SS6,51727,26151315
MR5-WLC-SS6,51727,26151315
MR5-WN-SS6,51721,1475900
MR5-WNC-SS6,51721,1475900
MRU3-ML-SS4816295575
MRU3MN-SS4811,7190310
MR3-WL-SS4,51220,1370800
MR3-WN-SS4,51215280530
MR2-WL-SS41017310625
